STB63 Three Phase Rectifier Battery Charger Control Board

Mrs. Lynn October 29, 2026

STB63 battery charge and discharge control trigger board adopts 32-bit industrial grade high-performance microprocessor, highly digital military quality design, supports network remote control and on-site control mode. The fuzzy-PID parameter is open-ended, fault alarm and parameters are displayed on the LCD screen or touch screen menu Chinese, parameters are automatically saved after setting. With constant voltage and constant current regulation, the charging operation parameters are set by the LCD screen. The charging phase can be set up in four stages, each stage are set independently: charging current, charging voltage, current limit, charging time and jump voltage, support one-stage discharge parameter setting, users can set the charging parameters of pre-charging, fast charging, slow charging or floating charging according to the current battery charging curve freely. The operation is reliable, technology is advance, functions are complete, performance is stable, debugging is convenient and easy to maintain.

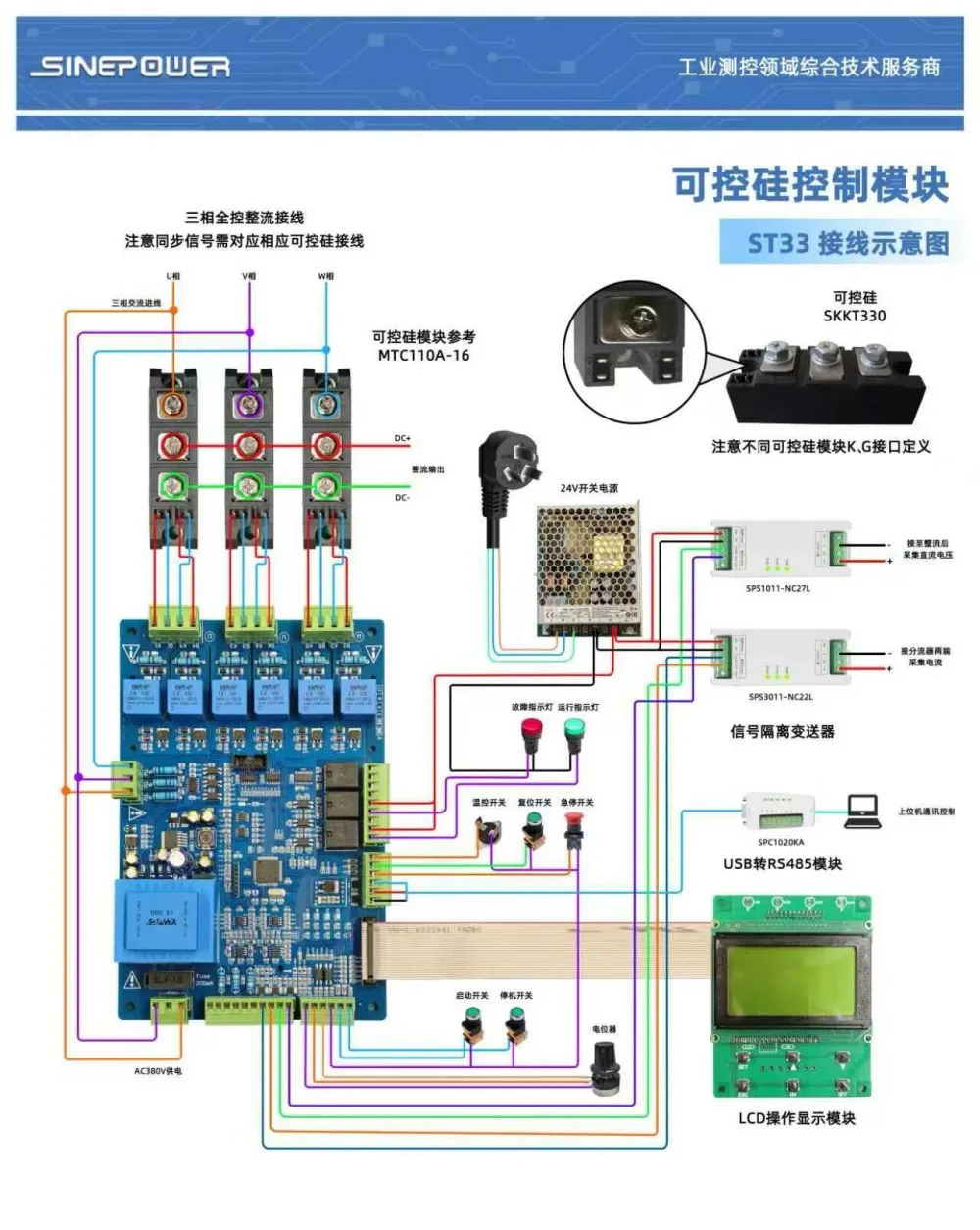

Wiring connection same as ST33 as below

 ST33 full cntrol scr firing card with constant voltage and constant current.jpg.webp

Technical specifications：

◆  Working power: 380Vac ±15% 50/60HZ

◆  The main circuit working voltage: 50 ~ 380Vac ± 15% 50 / 60HZ

◆  Voltage adjustment range: 1 ~ 300V

◆  Current adjustment range: 1 ~ 300A

◆  Phase shift range: 0 ~ 178 °

    Adjust the output resolution: 1 / 4000

    Stability accuracy: better than ± 1%

◆  Trigger current: ≥ 750mA trigger capacity: ≤ 1000A one-way thyristor

◆  PID dynamic response time: ≤ 50mS overshoot: ≤ 10%

◆  Input signal: DC0-5V, DC0-10V, 0-10mA, 4-20mA, 10K potentiometer adjustment

◆  Three-phase trigger imbalance: ≤ 0.3 °

◆  Applicable load: battery charge and discharge control

◆  Alarm relay contact capacity: 250Vac/10A

◆  Dielectric strength: 3500 VRMS

◆  Working environment conditions:

    Ambient temperature: -20°C~ 60°C

    Relative humidity: ≤ 90% RH (no frost)

    Indoor installation: no flammable, no explosive, no corrosive gas, no conductive dust, vibration less than 0.5G

    Altitude should be under 3000m, otherwise need to reduce the capacity level.2.14.

◆  Dimensions: 240 * 160 * 50mm

◆  Dimension between install holes: 225 * 145mm

◆  Weight: 1KG
